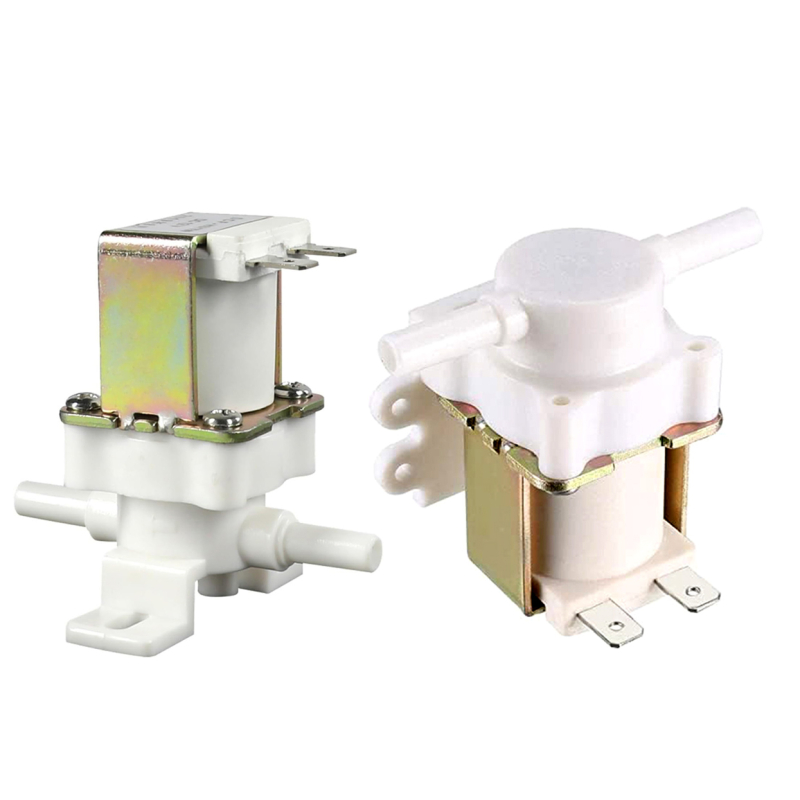

Solenoid Valves
Valves
220V Non-pressure Type, With Noise And Jitter, Please Be Cautious If Required
Pressure Type (Inlet Water valve) Suitable for water pressure 0.02~0.8Mpa
Non-pressure Type pressure (drain Water valve) Suitable for water pressure 0~0.01(0~0.02) Mpa
Action:
Forms:
Normally closed, Power on and water on (commonly used), normally open, Power on and water off(very useful)
Working temperature:
0-90°C degrees
Voltage variation range:
-10%~+10%
Working pressure:
pressure type 0.02-0.8Mpa,non-pressure type 0-0.01Mpa
Service life:
500,000 times, temperature 30 degrees, interval 10 seconds, power on for 10 seconds
Temperature environment:
0-50°C
The angle of the coil and the valve body:
adjustable 90 180 360 720 degrees
Filter function:
pressure type with filter, non-pressure type without filter
Medium:
suitable for purified water, and drinking water. Not suitable for acid-base, thick, viscous liquids
Rated electrical load:
AC220V, 0.045A: DC6V, 0.88A: DC12V, 0.55A: DC24V, 0.23A
Watertight performance:
<;;0.1ml/min. Water pressure 0.03-0.8mpa, leakage ;0ml/min
Flow characteristics 1:
pressure 0.02Mpa, flow 2L/min. Pressure 0.3Mpa, flow 8L/min. Pressure 0.8Mpa, flow 20L/min.
Pipe diameter
Inner diameter: 4mm
Outer diameter : 6.5mm(1/4")
package
1pcs X Solenoid Valve
2pcs X Terminal 6.3mm ( 10CM Length Giveaway)
