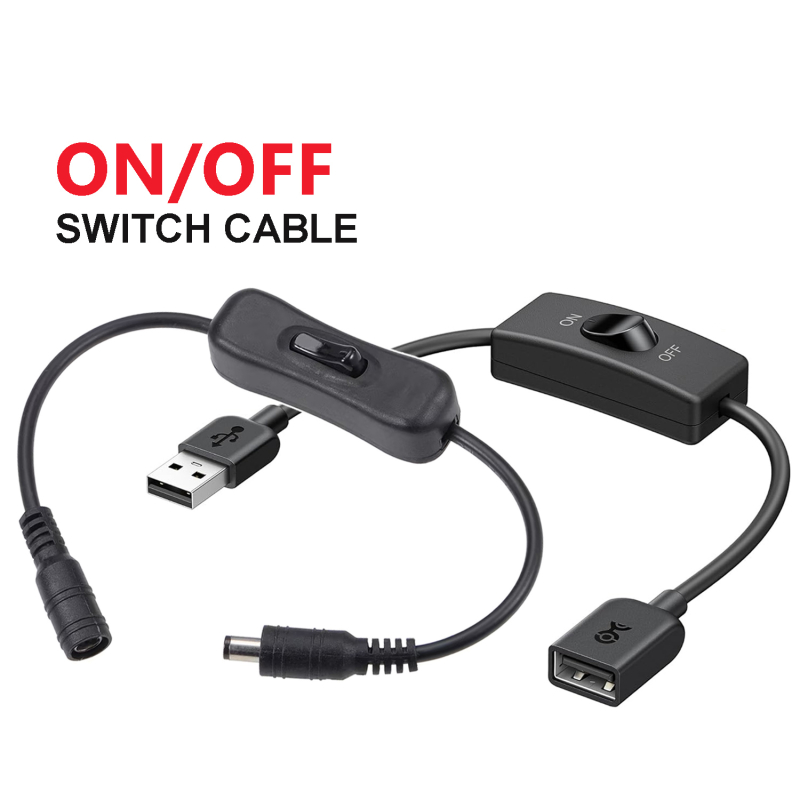

DC Male to Female

Operating condition:
This inline toggle switch supports 3V-12V voltage input

Easy installation:
With DC jack male and female power adapter cable connector on both ends of this inline rocker switch, it can just plug and play, no need wiring

Application:
Used as on off Switch for waterproof and non-waterproof SMD 3528 2835 5050 5630 LED strip lights, CCTV security camera, etc.

Package included:
1unit  x DC12V inline ON/OFF switch cable

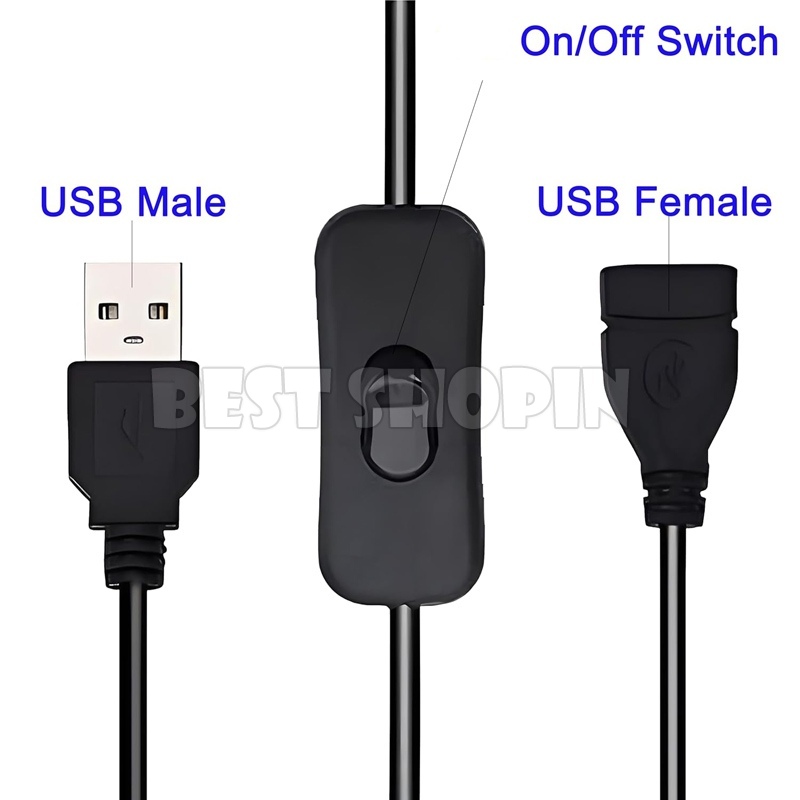

USB Switch Cable

Specification:

• USB type: USB 2.0
• Connector A: USB female
• Connector B: USB male
• Button: 303 switch
• Plug and charge, easy to use
• Transfer power: 5V / 1A-2A

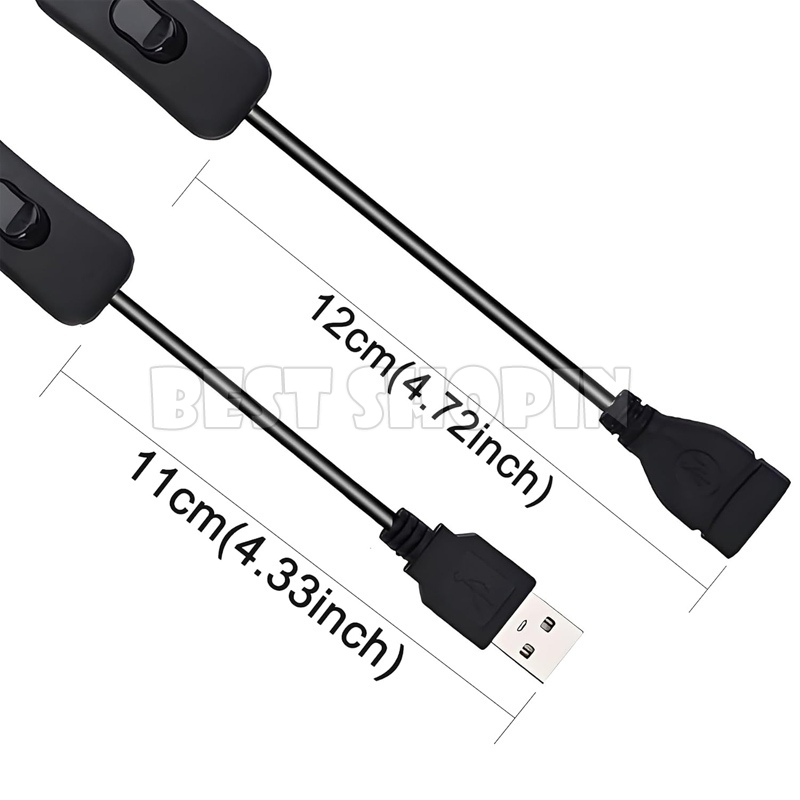

• Lenght: Approx. 28 cm/11 inch
• Wire Specifications: UL2464 22 # 2 core
• OD: 3.5MM black round bare copper wire

USB Cable with Switch
The usb lead is with addational On/Off button control switch for any USB-powered project simply to control power easily.

Use range:

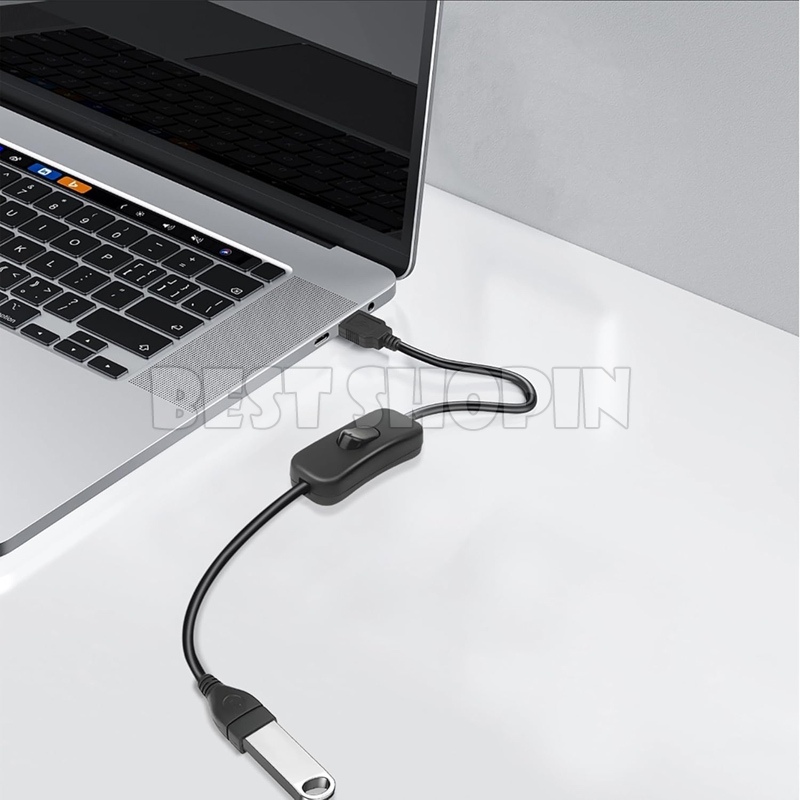

The USB 2.0 male to female cable works great with USB power supplies to your device such as Raspberry Pi, DC power output, low-power electrical power supply, a small desk lamp, USB fan, LED lights, and other computer's peripheral small power electrical power supply.

Note: The USB Cable is NOT have data lines, NO for DATA TRANSFER
1. Data lines are not connected through - this is a ground/5 V power switch only , the switch is on the positive 5 V line.
2. In between is an in-line switch that is rated for 2 Amps.
3. If you have a device that uses the data lines to set the charge rate, this switch may not work, we use it for adding a 'hard power switch' to a Raspberry Pi.

Package includes:
1 x Short USB Extension Cable with Switch On/Off

​
