Features of the Module:

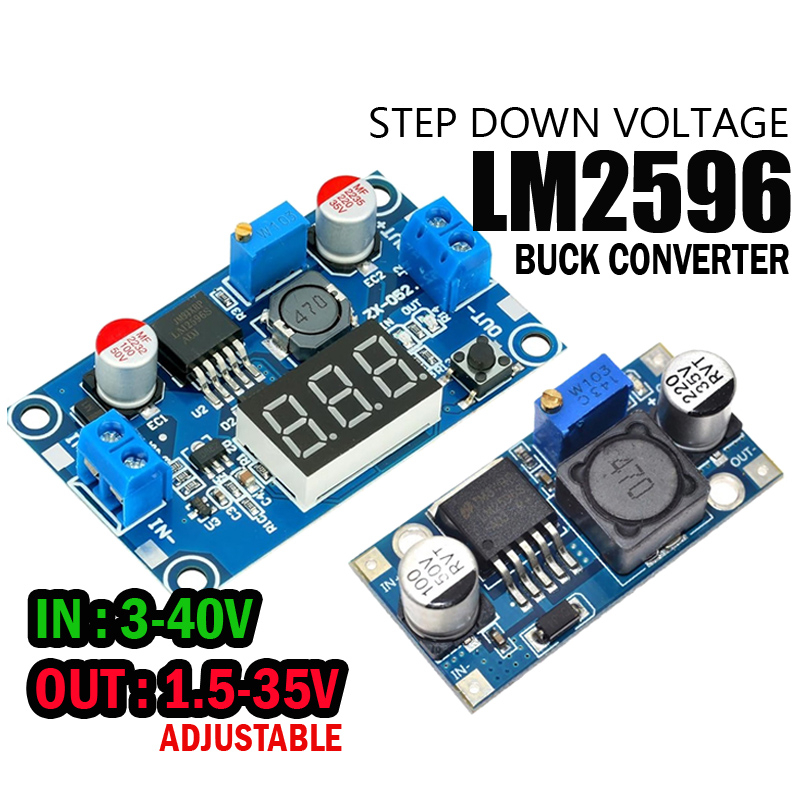

• LM2596 DC_DC Buck Converter
• Conversion efficiency: Up to 92% (the higher the output voltage, the higher the efficiency)
• Potentiometer adjustment direction: Clockwise (increase), Anti-clockwise (decrease)
• Switching frequency: 150KHz
• Rectifier: Non-synchronous rectification
• Module properties: Non-isolated step-down module
• Short circuit protection: Current limiting, self-recovery
• Operating temperature: Industrial grade (-40 to +85 degrees Celsius) (output power 10W or less)
• Load regulation: +/- 0.5%
• Voltage regulation: +/- 2.5%
• Dynamic response speed: 5% 200uS
• Connection mode: Welded, plus pin can be directly soldered PCB

Specifications:

1. Input voltage: 3-40V
2. Output voltage: 1.5-35V (adjustable)
3. Output current: Rated current is 2A, maximum 3A (if the output power more than 10W, the heat sink is needed.)
4. Item size: 48 * 22 * 12mm / 1.9 * 0.9 * 0.5in
5. Item weight: 12g / 0.4oz
