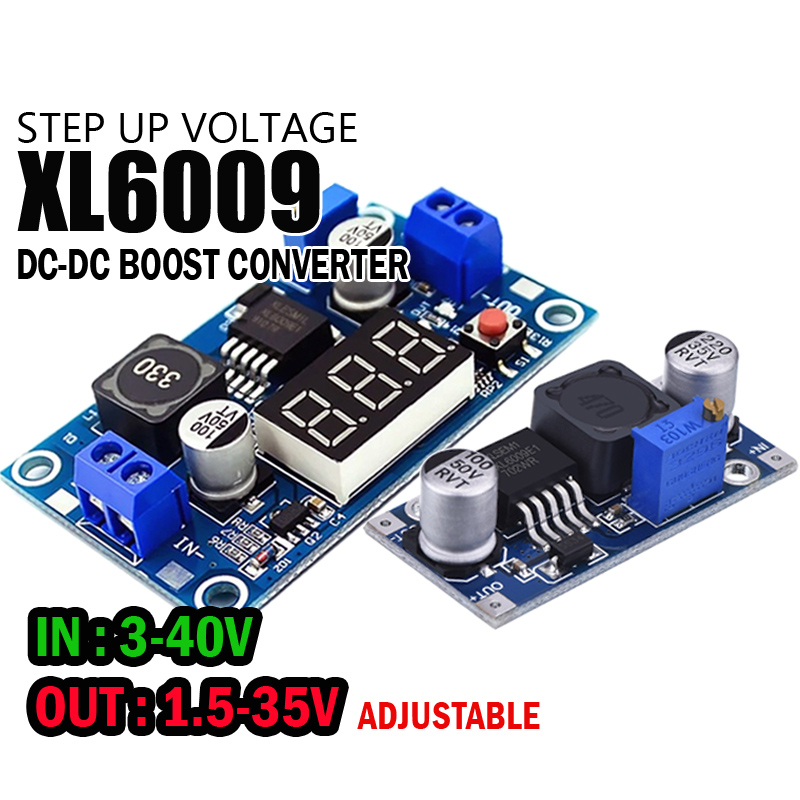

XL6009 DC-DC Adjustable Step Up Voltage Booster Converter Module With Display Without Display
Electronic Projects need a power supply and in some cases, you might need to step up or boost the voltage. Example from 4xAA battery, step-up voltage to 12V and power the Arduino via DC jack input.

1. Well, this XL6009 adjustable boost convert will help you. It is the most basic and compact module that allows you to boost up the Vin to 35V (maximum). The module comes without a terminal block or component to display the Vin or Vout, so you do need an additional multimeter to measure the input or output voltage :) before connecting it to the load. Nonetheless, it comes with a multiturn potentiometer/variable resistor/adjustable resistor that provides high-resolution voltage adjustment with a flat screwdriver.
2. Note: If you are a beginner and needed a more friendly module, the alternative is the XL6009 module that comes with a display.

Specification

• Wide range input voltage: 4.5V to 32V
• Adjustable output voltage: 5V to 35V
• Step up converter, Vout > (Vin + 1V)
• Maximum output current (No Display): Peak: 3A [Heatsink required], Continuous: 2A
• Maximum output current (With Display): Peak: 4A [Heatsink required], Continuous: 3A
• Output voltage ripple: 30mV
• Switching frequancy: 400KHz
• Efficiency: 92% max
• Rated Power: 20W
• Operating temperature: -45ºC to +85ºC
• Dimension (No Display): 43x21x14mm
• Dimension (With Display): 60x35mmx14mm
• Weight (No Display): 12g
• Weight (With Display): 24g
