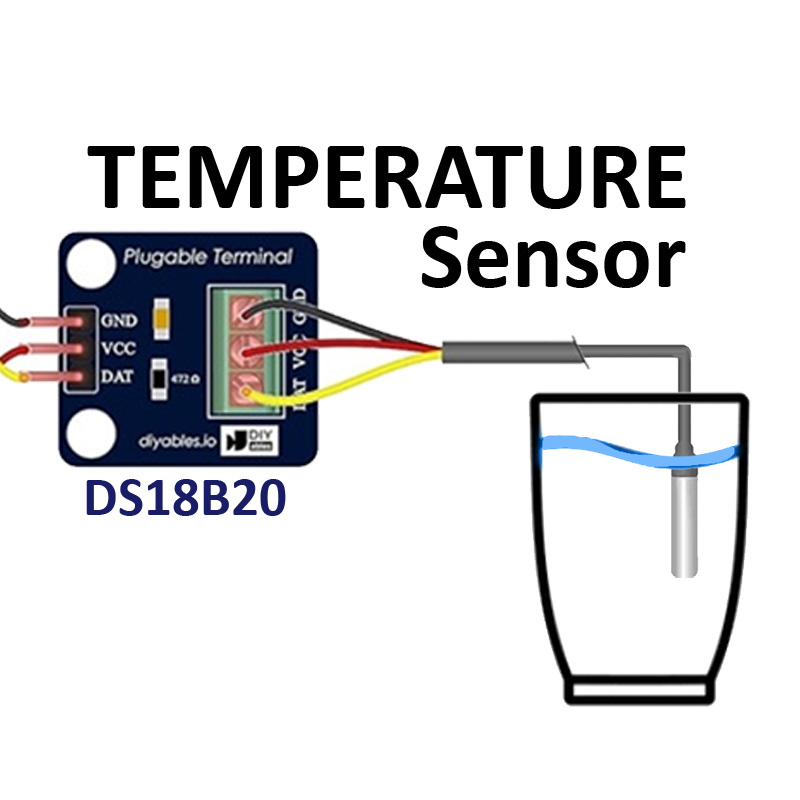

• The field temperature is directly transmitted by the "one-wire bus" digital method, which is suitable for field temperature measurement in harsh environments.
• Temperature can be measured directly in places such as water or soil.
• The adapter module comes with a pull-up resistor, and it can be directly connected to the GPIO of the Raspberry Pi without an external resistor.

• Suitable for Arduino and Raspberry Pi
• Output leads: Yellow (DATA), Red (VCC), Black (GND)
• Temperature sensor supply voltage: 3.0V ~ 5.25V
• Adapter Cables: DATA, VCC, BLK
• Operating temperature range:-55 ℃ to +125 ℃ (-67 ℉ to +257 ℉)
• The cable can withstand temperature not higher than 85 ℃ / 185 ℉
• Temperature sensor resolution: 9 to 12 adjustable resolution

• 1 Pcs Adapter module
• 1 Pcs DS18B20 temperature sensor line
• 3 Pcs female to female jumper wires
