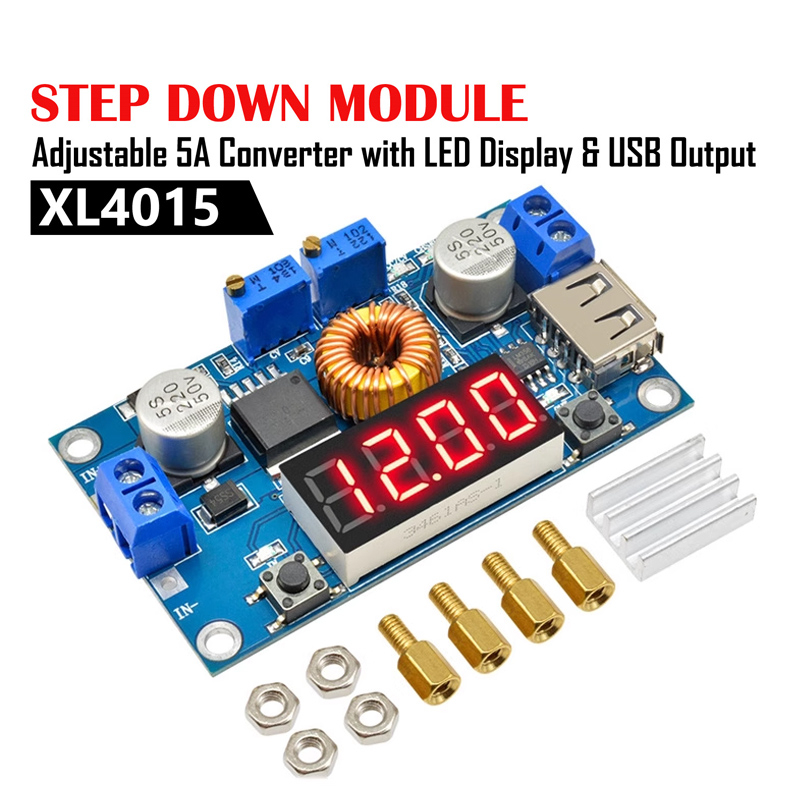

XL4015 Adjustable Step Down Module with LED Display and USB Output
XL4015 Adjustable Step Down Module with LED Display and USB Output
Product Code: Step Down Module
Availability: 2 - 3 Days
Stock Ready: Kuala Lumpur
Availability: 2 - 3 Days
Stock Ready: Kuala Lumpur
Price:
RM13.30
- OR -
XL4015 5A DC to DC CC CV Lithium Battery Step Down Charging Board Led Power Converter Lithium Charger Step Down Module
- Input voltage range: DC 5-36V; Output voltage range:DC 1.25-32V adjustable.
- USB output voltage is consistent with the module, not a fixed 5V output. When charging for digital equipment, make sure USB output voltage is 5V.
- Application:Can use as a step-down modules with overcurrent protection, a battery charger, or a LED constant current driver module.
Specifications:
- Input voltage range:DC 5-36V
- Output voltage range:DC 1.25-32V adjustable
- Output current: 0-5A
- Output power: 75W
- High efficiency up to 96%
- Function:Built in thermal shutdown function, current limit function & output short protection function.
- Input reverse polarity protection: None (if required, high current diode in series with the input).
- Size: L x W x H =68.2×38.8×15mm
- Weight: 39g
Application:
1.Use as a step-down modules with overcurrent protection.
2.Use as a battery charger.
3.Use as a LED constant current driver module.
NOTE:
1.When you use the product, the module inputs and outputs to be isolated from ground.
2.USB output voltage is consistent with the module, not a fixed 5V output. When charging for digital equipment, make sure USB output voltage is 5V.
3.“The module can not adjust the output voltage is always equal to the input voltage.”When you have this problem, please counterclockwise rotation of the“voltage potentiometer”10 laps or more, then use the module you can adjust the output voltage. Because the factory default output voltage of about 20V.
Package includes:1 Pcs DC-DC Step down Module
