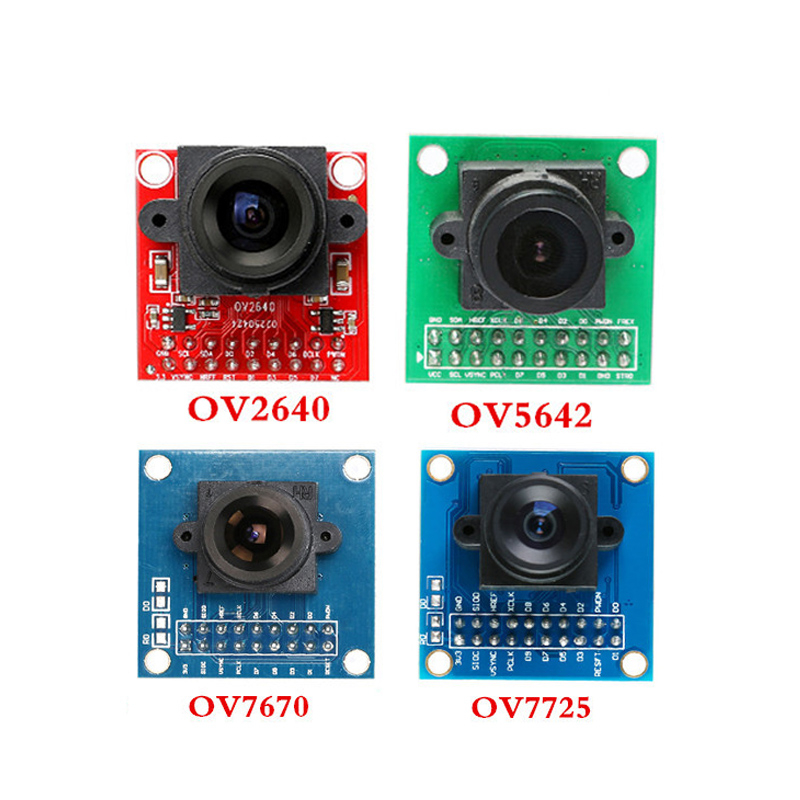

DESCRIPTION OV7670
​​Photosensitive array 640X480
IO voltage 2.5V to 3.0V ( internal LDO to core supplies ) the
Power operation 60mW/15fpsVGAYUV
Sleep < 20 μ A
Temperature operation from -30 ° C to 70 ° C
0 ° C to 50 ° C
( 8 -bit) output format ? YUV/YCbCr4 RGB565/555/444 GRB4: 2:2: 2:2 Raw RGB Data
Optical size of 1/6 "
field of view angle of 25 °
maximum Zhen rate 30fps VGA
Sensitivity 1.3V / (Lux-sec)
Signal to noise ratio of 46 dB
Dynamic range of 52 dB
Browsing mode progressive
Electronic exposure
Area of 3.6 μ mx 3.6 μ m


DESCRIPTION OV2640

• Control interface: SCCB.
• UXGA (1600x1200) at 15 fps, supports VGA
• Working voltage: 3.3V
• Color: Red
• Material: metal
• Size: module size: 27mmX27mm
• Sensor size: 1/4 inch​

Dark current 12 mV / s at 60 ° C
