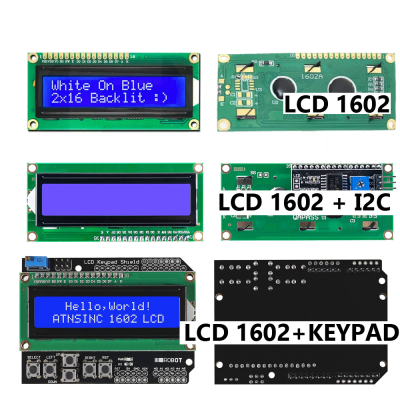

LCD with i2C
Components: Blue 16x2 1602 lcd display + I2C serial interface backpack; 1602 lcd screen can display 2-lines x 16-characters with built-in industry standard HD44780 equivalent LCD controller.
Default Address: 0x27 for PCF8574T chip; 0x3F for PCF8574AT chip; please check which chip you have on i2c interface. (Before you upload the code to the control board, please download the LiquidCrystal_I2C library)
Four Pins: VCC, GND,SDL and SCA LISM used for connecting Dupont Line or IIC dedicated cable.
Display Function: Can be used to display real time clock, temperature, humidity etc. (A potentiometer is also necessary to adjust the contrast. Working Voltage: Only 5V )
Wide Application: Commonly used in copiers, fax machines, laser printers, industrial test equipment and networking equipment such as routers and storage devices.

Specification :

• LCD type : LCD1602 (16*2)
• IIC / I2C module soldered on LCD.
• 4 Pinout with VCC,GND,SDA,SDL
• IIC Address : 0x27
• Size : 82mm * 36mm*  18mm
• Blue Background ,
• White colour word display

Item Include
LCD1602 with I2C Module

We present you in PcComponentes the screen 1602 compatible with arduino. A screen of 16x2 lines and backlight with green light.

Specifications:


• Built to industry standard HD44780
• Equivalent LCD Controller
• Mainly used in:
• Photocopiers
• Fax
• Machines
• Laser Printers / Industrial
• Test equipment
• Networks
• Equipment such as Routers and Storage Devices
• LCM Type: Characters
• 2 lines x 16 characters screen
• Operates with 5V DC
• Size: 80mm x 36mm x 10mm
• Display area Size: 64.5 mm x 15 mm

Features:

Operate at 5V
Uses Arduino LCD4Bit library
Plug and Use with Arduino main board, no solder or fly-wiring needed.
2x16 LCD.
6 push buttons

Working with: Arduino Uno, Arduino Mega and Arduino Duemilanove.

Working with:
Arduino Uno, Arduino Mega and Arduino Duemilanove.
