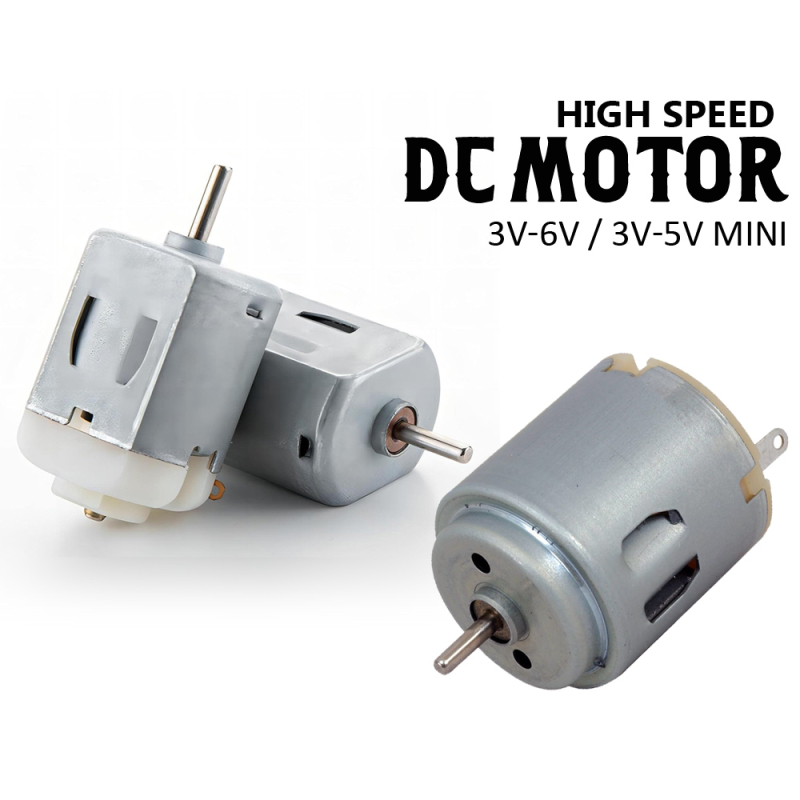

DC Motor High Speed Electronic 3V-5V (130 mini) / 3V-6V (140) Robotic
DC Motor High Speed Electronic 3V-5V (130 mini) / 3V-6V (140) Robotic
Product Code: DC Motor
Availability: In Stock
Stock Ready: Kuala Lumpur
Availability: In Stock
Stock Ready: Kuala Lumpur
Price:
RM2.45
- OR -
This DC motor has a recommended operation voltage of 3 – 6 V
Approximate specifications at 6 V: free-run speed of 11,500 RPM, free-run current of 70 mA, and stall current of 800 mA.For an estimate of the torque, note that the 228:1 plastic gearmotor produces roughly 100 oz-in of torque at 6 V using this motor, and the 120:1 plastic gearmotors produce roughly 75 oz-in of torque at 6 V. The output shaft has a diameter of 2 mm.
This motor works well with many of lower-power motor controllers, such as the qik 2s9v1 dual serial motor controller,Orangutan SV-328 robot controller, Baby Orangutan robot controller, and TB6612FNG dual motor driver carrier.
Features :
- 100% brand new and high quality
- Used for DIY Electric toy and so on.
- Brushed DC Motor
3V-5V [130 Mini]
- Input voltage: 3V-6V DC
- Maximum output revs (no load) 5,000 (3v) up to 10,000 (6v)
- Shaft Diameter: 2mm/0.07inch
- Motor Body Size : 2.5x2x1.6cm / 0.98x0.78x0.63inch
- Brushed DC Motor: 130-Size, 6V, 11.5kRPM, 800mA Stall
3V-6V [140]
- Operating Voltage: 3 - 6V ℃
- Long: 25mm
- Diameter: 21mm
- Shaft diameter: 2mm
