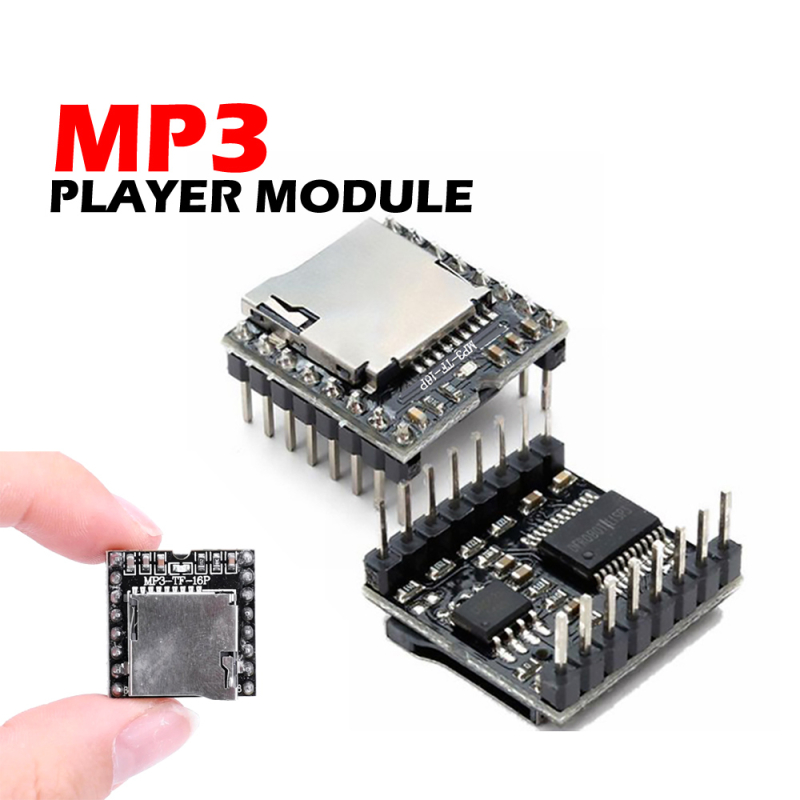

Mini MP3 Player Module 16P Support TF Card DFPlayer Audio Voice Module
Mini MP3 Player Module 16P Support TF Card DFPlayer Audio Voice Module
Product Code: MP3 Module
Availability: 2 - 3 Days
Stock Ready: Kuala Lumpur
Availability: 2 - 3 Days
Stock Ready: Kuala Lumpur
Price:
RM5.99
- OR -
Mini MP3 Player
The Mini MP3 Player is a small and low cost MP3 module player with an simplified output directly to the speaker. The module can be used as a stand alone module with attached battery, speaker and push buttons or used in combination with an Arduino UNO or any other with RX/TX capabilities.
The Mini MP3 Player perfectly integrates hard decoding module, which supports common audio formats such as MP3, WAV and WMA. The module also supports TF card with FAT16, FAT32 file system. Through a simple serial port, you can play the designated music without any other tedious underlying operations.
Specification :
Supported sampling rates (kHz): 8/11.025/12/16/22.05/24/32/44.1/48
24 -bit DAC output, support for dynamic range 90dB , SNR support 85dB
Fully supports FAT16 , FAT32 file system, maximum support 32G of the TF card, support 32G of U disk, 64M bytes NORFLASH
A variety of control modes, I/O control mode, serial mode, AD button control mode
Advertising sound waiting function, the music can be suspended. when advertising is over in the music continue to play
Audio data sorted by folder, supports up to 100 folders, every folder can hold up to 255 songs
30 level adjustable volume, 6 -level EQ adjustable
The Mini MP3 Player is a small and low cost MP3 module player with an simplified output directly to the speaker. The module can be used as a stand alone module with attached battery, speaker and push buttons or used in combination with an Arduino UNO or any other with RX/TX capabilities.
The Mini MP3 Player perfectly integrates hard decoding module, which supports common audio formats such as MP3, WAV and WMA. The module also supports TF card with FAT16, FAT32 file system. Through a simple serial port, you can play the designated music without any other tedious underlying operations.
Specification :
Supported sampling rates (kHz): 8/11.025/12/16/22.05/24/32/44.1/48
24 -bit DAC output, support for dynamic range 90dB , SNR support 85dB
Fully supports FAT16 , FAT32 file system, maximum support 32G of the TF card, support 32G of U disk, 64M bytes NORFLASH
A variety of control modes, I/O control mode, serial mode, AD button control mode
Advertising sound waiting function, the music can be suspended. when advertising is over in the music continue to play
Audio data sorted by folder, supports up to 100 folders, every folder can hold up to 255 songs
30 level adjustable volume, 6 -level EQ adjustable
