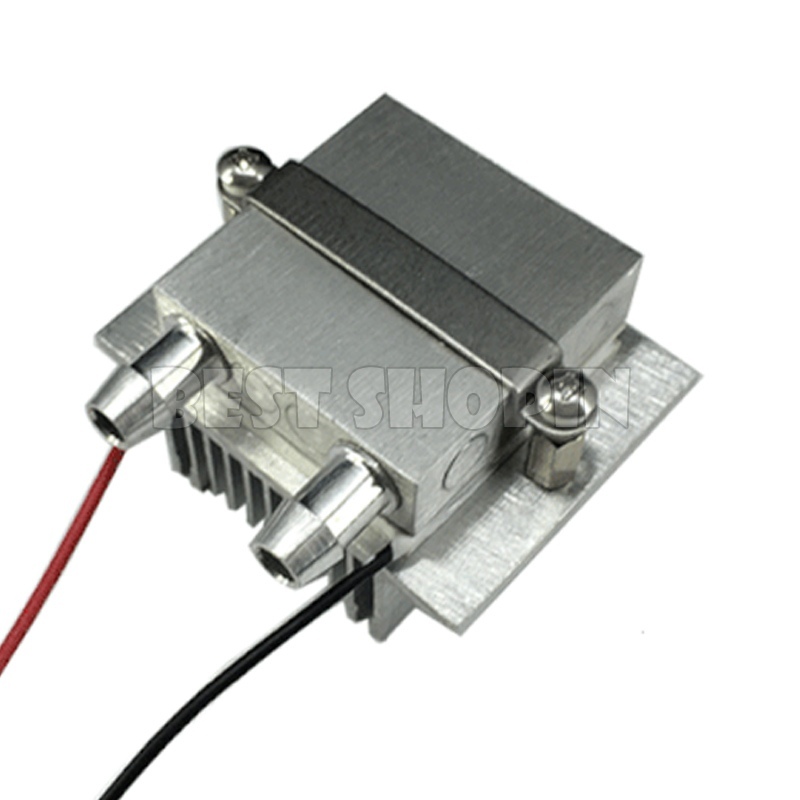

Water-Cooled Head Fastener 42mm for Peltier Cooler TEC1-12706 (40x40mm)

Enhance the performance and reliability of your Peltier cooling system with this 42mm water-cooled head fastener kit. Designed specifically for 40x40mm TEC modules such as TEC1-12706, the stainless steel spring clips provide uniform mounting pressure, ensuring optimal thermal contact and efficient heat transfer.

Features:

✅ Compatible with 40x40mm Peltier TEC modules (TEC1-12706, TEC1-12710, etc.)
✅ 42mm water cooling block mounting system
✅ Stainless steel spring hold-down clips for even pressure distribution
✅ Improves thermal conductivity and cooling efficiency
✅ Reduces risk of TEC damage caused by uneven clamping force
✅ Easy installation with M3 screw mounting points
✅ Suitable for DIY cooling projects, laboratory equipment, laser cooling, CPU cooling experiments, and industrial temperature control

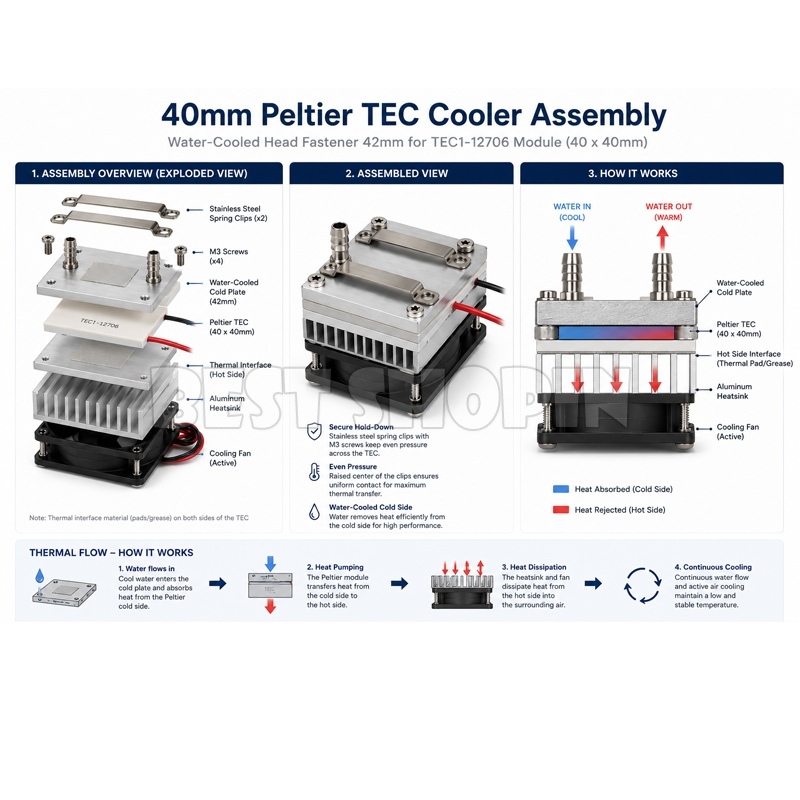

How It Works:

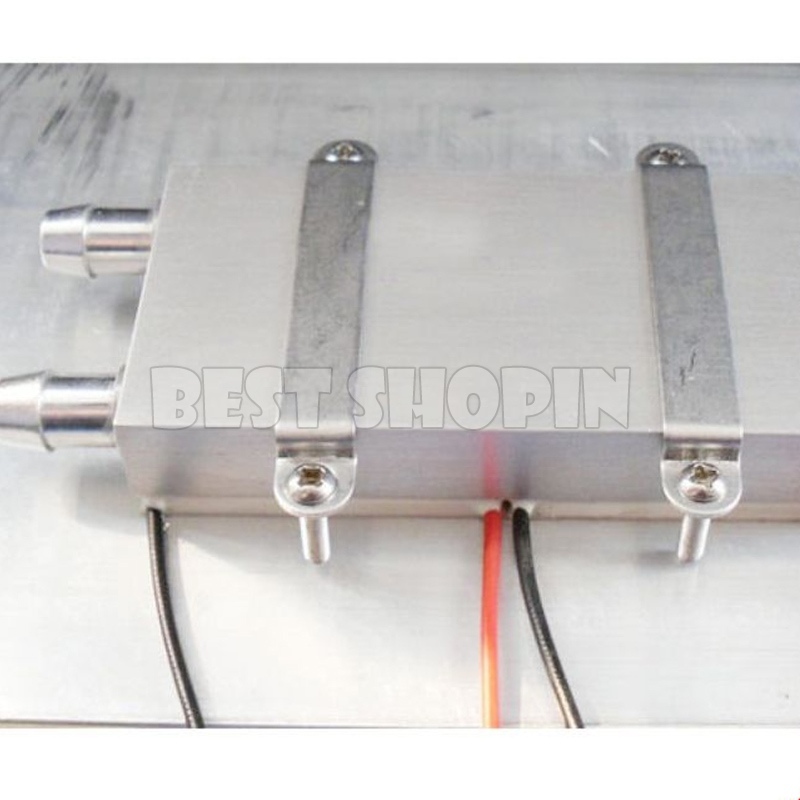

1. The spring clips securely clamp the TEC module between the water-cooled cold plate and heatsink.
2. The raised center section of the clips applies even pressure across the TEC surface.
3. Cooling water flows through the cold plate to absorb heat.
4. The TEC transfers heat from the cold side to the hot side.
5. The heatsink and fan dissipate heat, maintaining efficient cooling performance.

Package Includes:

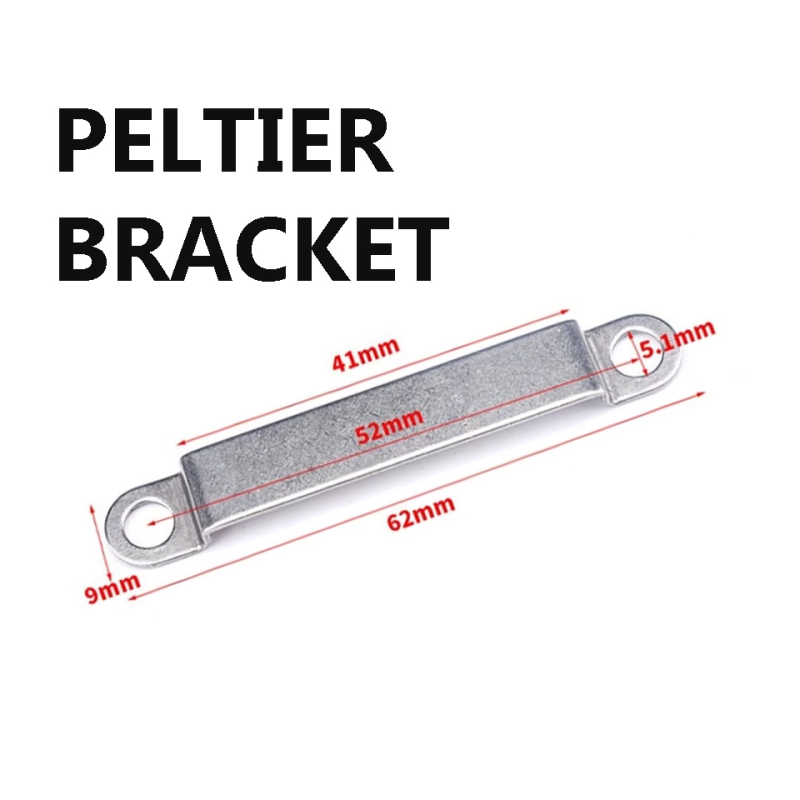

• 2 × Stainless Steel Spring Hold-Down Clips
• M3 Mounting Screws
• 42mm Water-Cooled Head Fastener Set

Note: TEC module, water block, heatsink, fan, thermal paste, and other accessories shown in illustrations are for demonstration purposes only unless otherwise stated.
