• Input: AC100-240V 50/60 Hz 0.8A

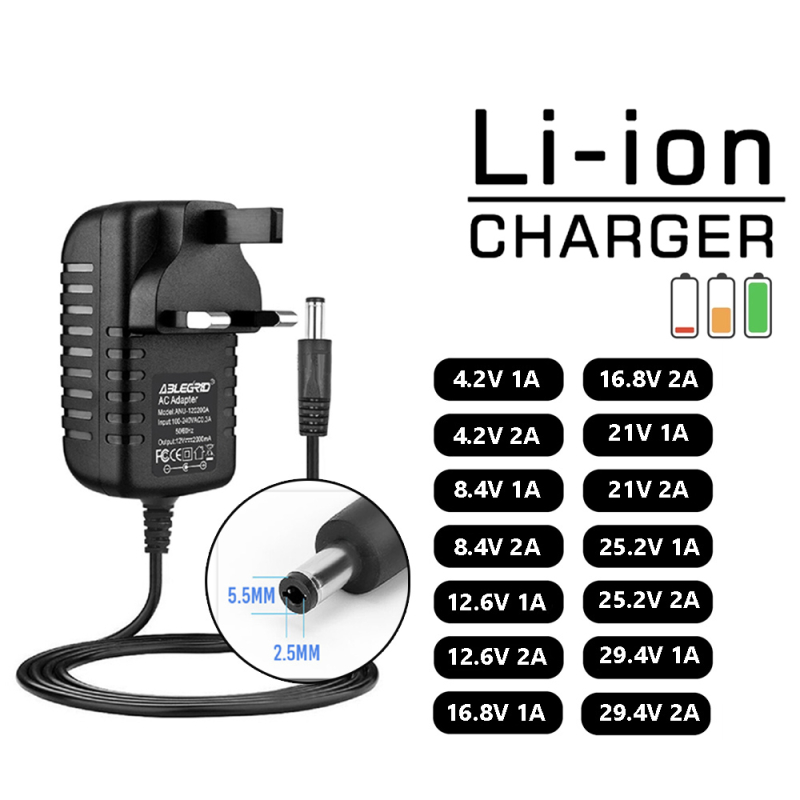

• Voltage when charging: 4.2V 8.4V 12.6V 16.8V 21V 25.2V
• Charging Current: 1A/2A

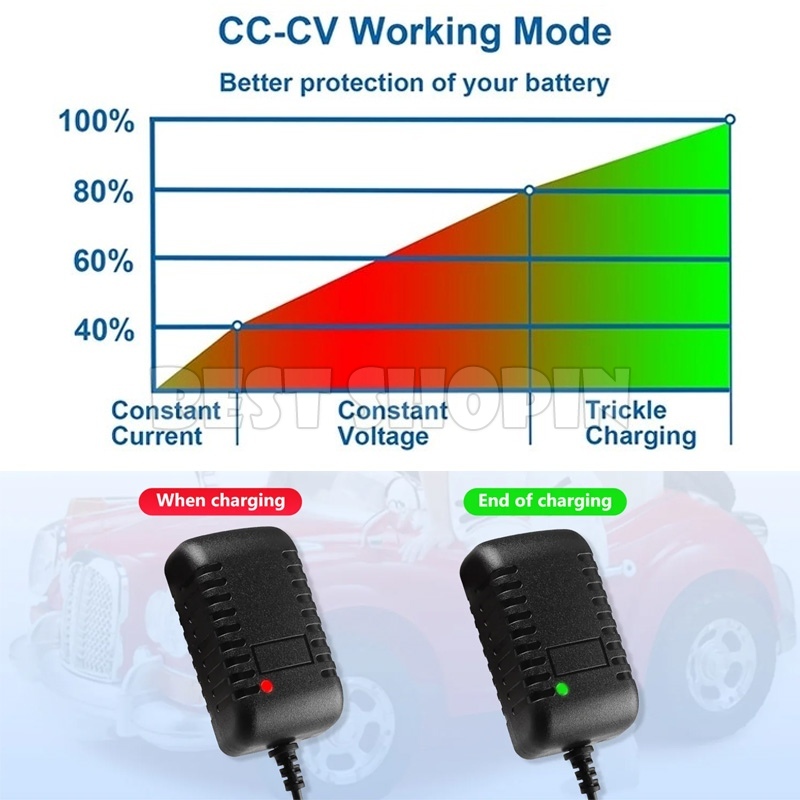

• Charging mode: CC-CV
• Charging indicator: Red light = charging, green light = fully charged

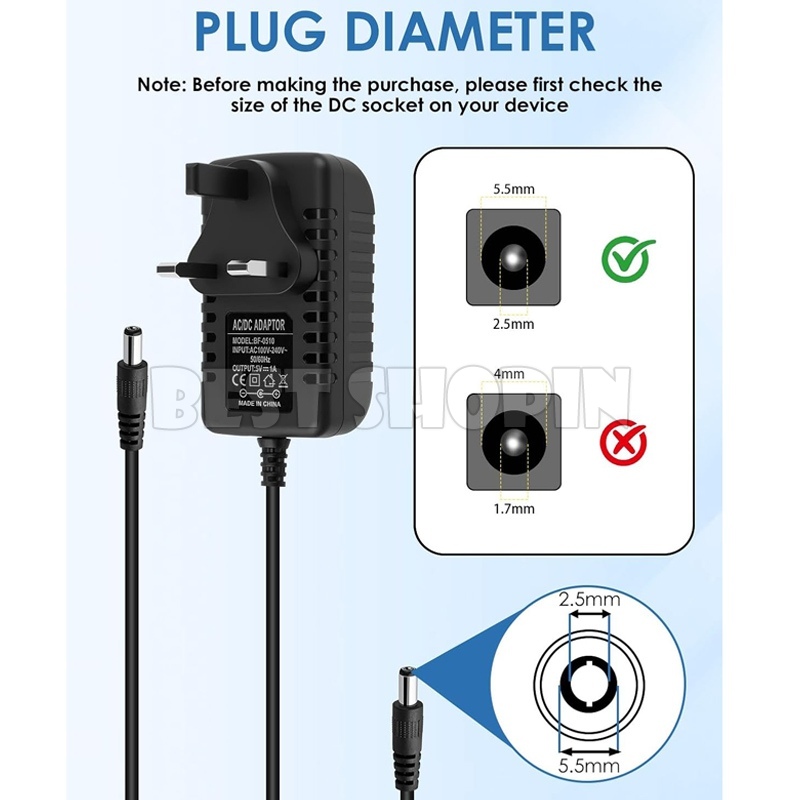

• Charging port: 5.5mm(OD)*2.5mm(ID)

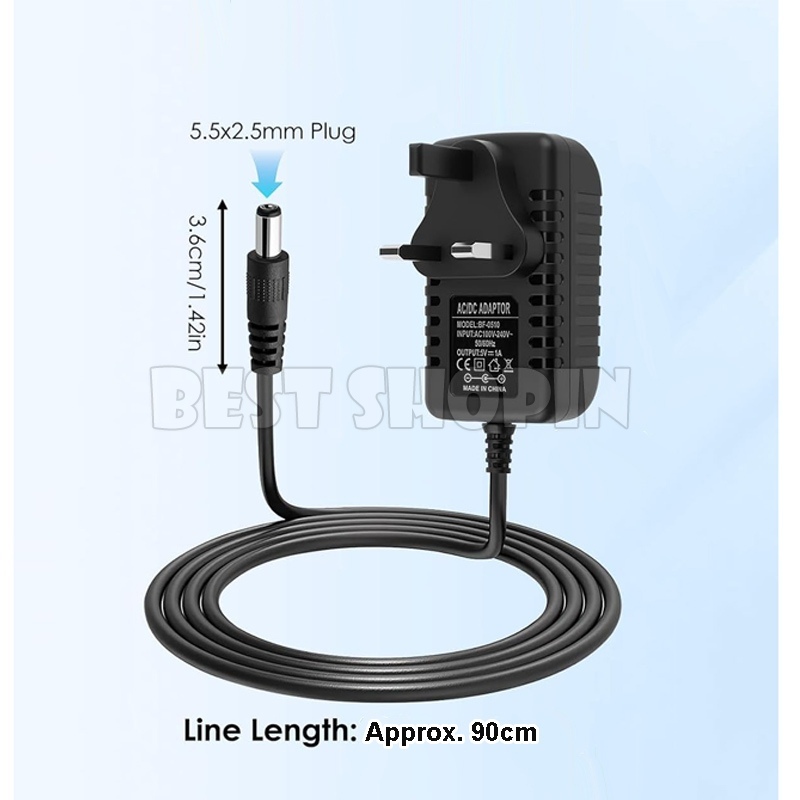

• Cable length: 94cm

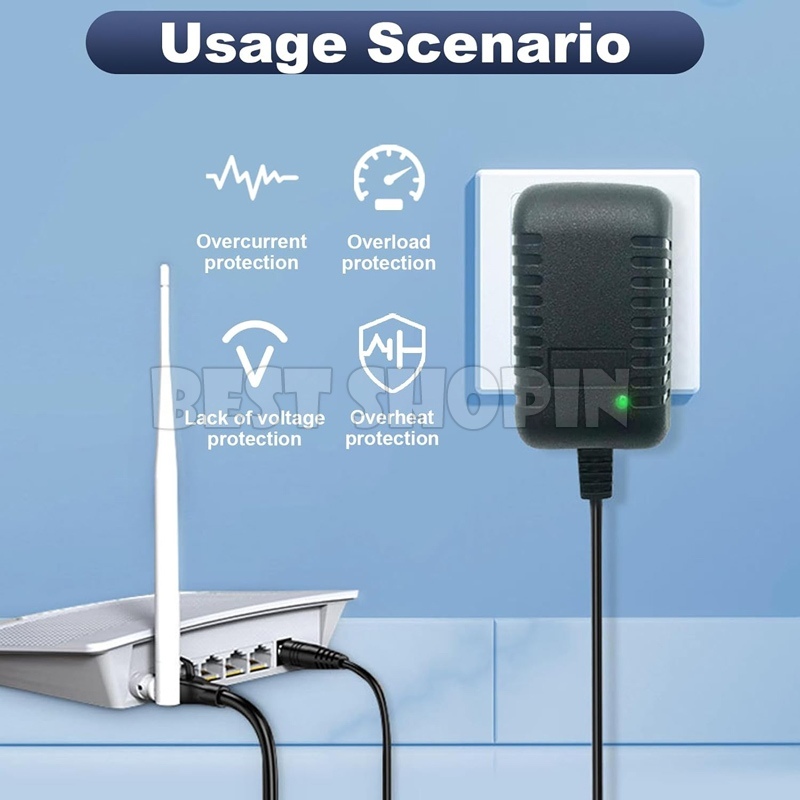

Protection: overvoltage protection / overcurrent protection / overload protection / short circuit protection

Application: Lithium batteries (lithium-ion batteries, lithium-polymer batteries), the nominal voltage of the battery is +-5%

Malaysia UK Plug

Protective functions:

1. Overcurrent protection at the input, If the input current exceeds 2A, the charger will turn off the fuse to avoid internal circuit breakdowns leading to fires and other risks.

2. Overcurrent protection at the output, A charger with a lithium-ion battery for charging current is limited to a certain range to maintain safety and battery life.

3. Short circuit protection, If the charger is used improperly, the output current of the charger will be 200 or

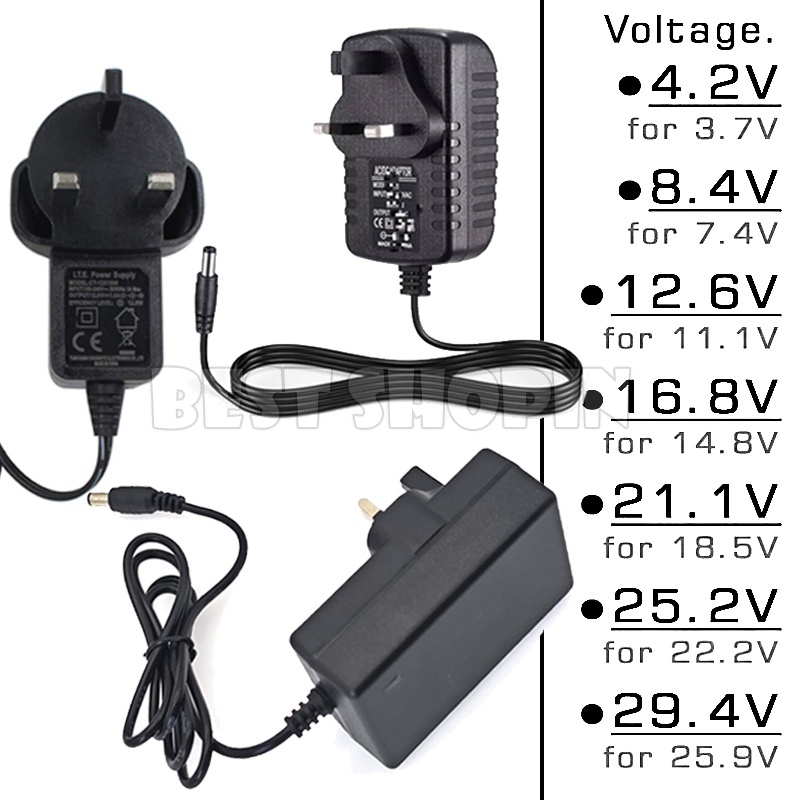

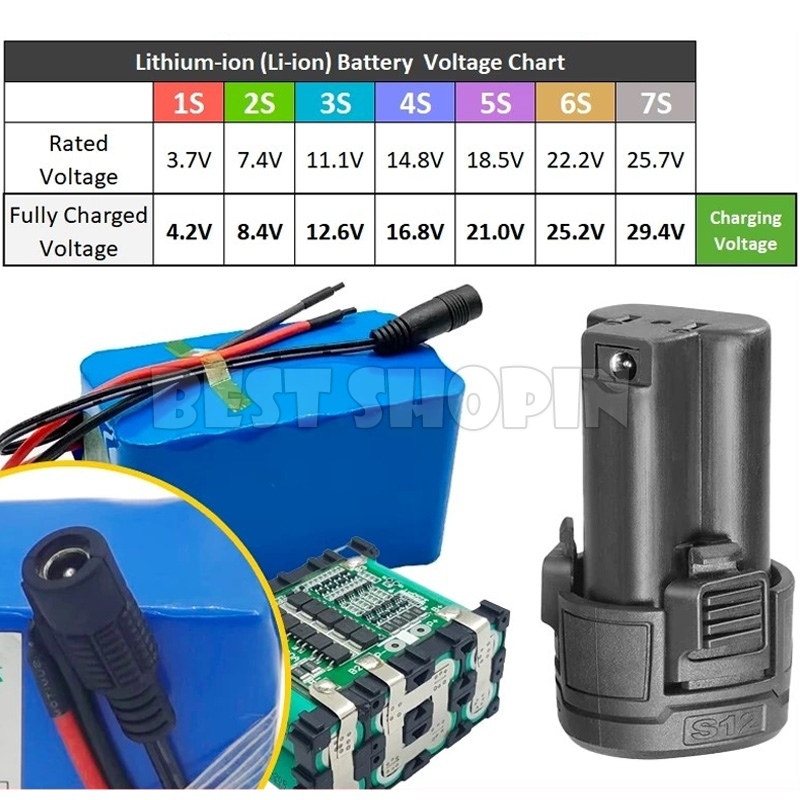

1pc Lithium Battery 3.7v-4.2v

2pcs Lithium Battery 7.4v-8.4v

3pcs Lithium Battery 11.1v-12.6v

4pcs Lithium Battery 14.8v-16.8v

5pcs Lithium Battery 18.5v-21v

6pcs Lithium Battery 22.2v-25.2v

7pcs Lithium Battery 25.9v-29.4v

12V Lithium Battery select 12.6V charger

V88, 88VF, VF68, V98 MAX Electric Drill Power Tools use 21V

Higher Current(A) can replace lower Current(A) charger.

Note: Please DO NOT let the unit work long hours over rated current!
