CCPM Servo Consistency Master / Servo Tester

1. The device can also be used as a signal generator for electric speed controller (ESC), then you can test your motor system without using a transmitter and receiver.

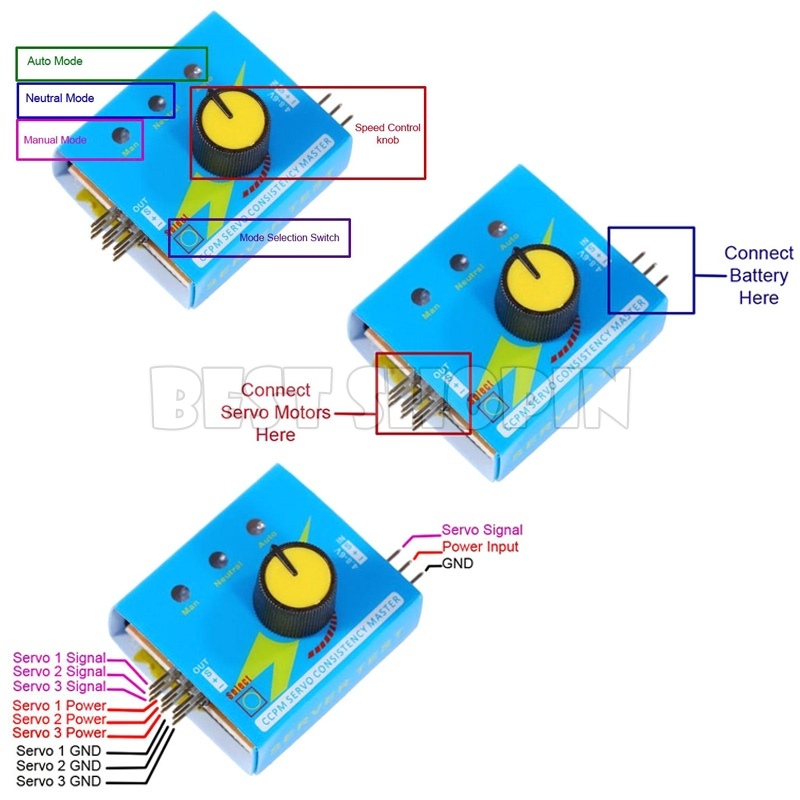

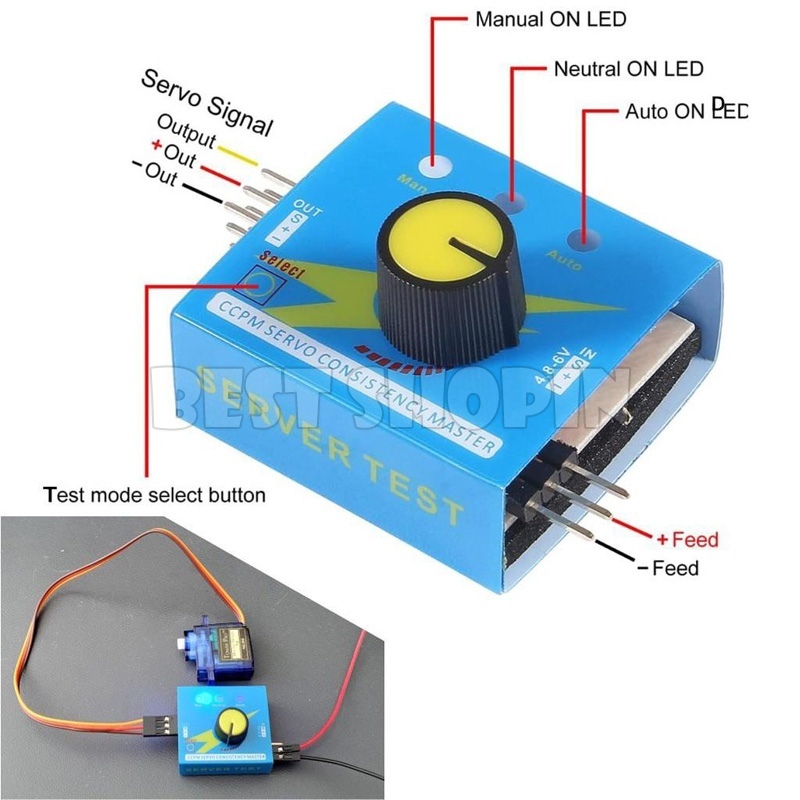

2. There are 3 modes to check servos or ESC:
3. Manual mode: turn the knob with different speed, check the reaction time.
4. Neutral mode: make the servo go back to the neutral point.
5. Automatic \"window wiper\" mode: make the servo swing like a window wipers in the biggest angle.
6. It can connect 1-3 servos simultaneously and test such as 1-3 servos consistency and so on.
7. You can also connect 1-3 ESC to test and compare their reaction time respectively.
8. It can connect 3 servos of the CCPM helicopters and select servos.
9. It can also connect the servo of aircraft install the steering-box and adjust planes by using such as the neutral mode and so on.

Specifications:

• Voltage consumption: DC4.8-6V
• Size: 48 x 42 x 17mm
• Color: Blue
• Item size: 48*42*17 mm

Package Contents:

1 x Servo Motor Tester
