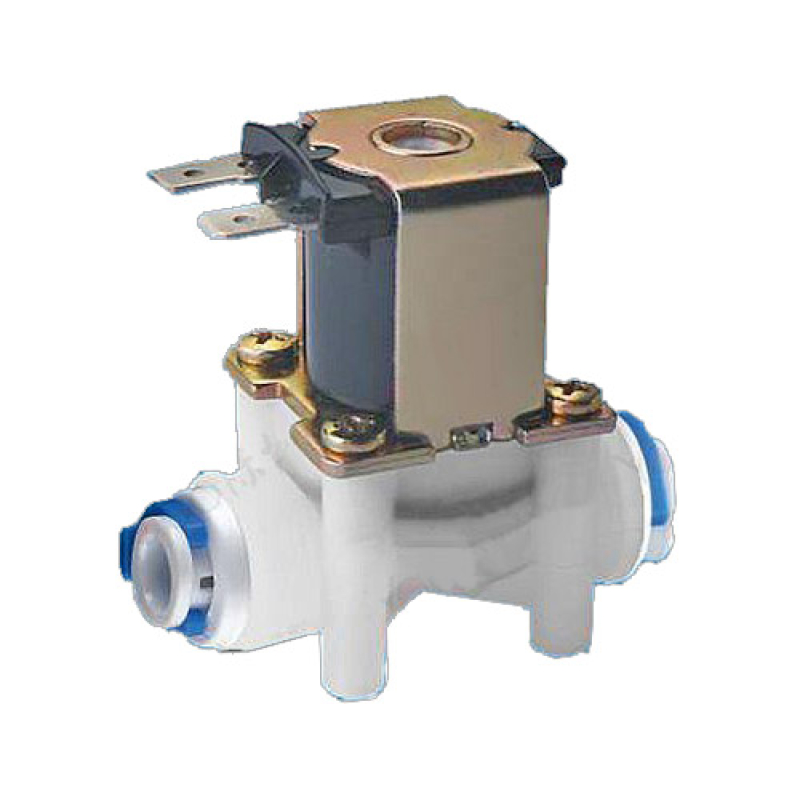

Solenoid valve specifications are as follows:

1. The valve is normally closed solenoid valve,

2. Voltage Specifications: DC24V,

3. Pressure: This is the solenoid valve for 0.02-0.8MPA pressure,

4. Rated power: 5W,

6. Work: quota system (ie, intermittent duty cycle , the risk of the longest continuous work about four hours, ten minutes after the stop can continue to work more than four hours will burn the coil)

7. Temperature operation :( 0-100 ° C ) water

8. Water flow characteristics: 0.02Mpa > 0.4 L / min ;　0.10Mpa > 1.5 L / min ; 0.30Mpa > 3.5 L / min ; 0.80MPa > 6 L / min

9. Product dimensions:

10. Insulation: insulation resistance between the conductor and non-conductor greater than 100MΩ

Can be used to control automatically the air, drink water, oil flow  in the pipeline.  Great pneumatic part for industrial machines.

11. Insulation class: E class insulation

12. Life: ≥ 50 million times (laboratory data)  ≥ 3 0 million times (actually normal use)

General Troubleshooting:

This valve is 100% factory strict inspection over the water, the failure rate of less than 1/50000, if you receive the goods course there are problems, please own investigation based on the following steps!

1. Make sure that the product looks I sent you is not what you need, make sure you buy the voltage is much that we send you the products you buy voltage is consistent with, and you meet the requirements of the actual use of voltage (voltage fluctuation range of 5%).

2. Make sure that you have installed, the flow direction is not toward the direction of the arrow (the reverse does not work if connected).

3. Make sure you have plugged into the water, make sure there is no water entering the solenoid valve.

4. reconfirm your water pressure, water pressure required to achieve 0.02-0.8MPA, the water pressure is not within this range are not working properly!
