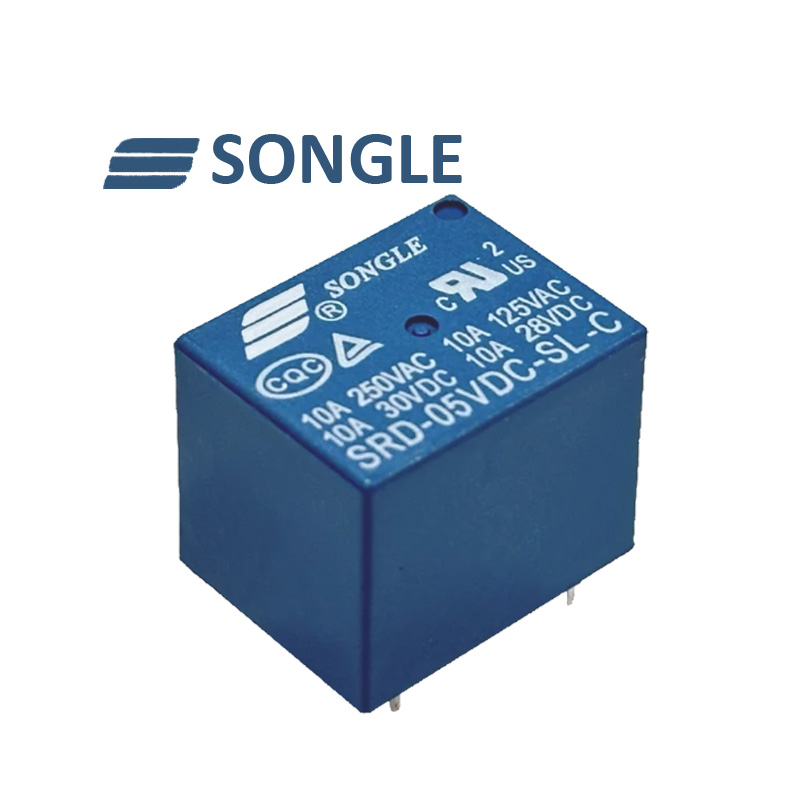

Mini 5V DC Power Relay SRD-5VDC-SL-C 5 Pin PCB Type

Description :

Selection of plastic material for high temperature and better chemical solution performance
Sealed types available
Simple relay magnetic circuit to meet low cost of mass production

Specification:

Model: SRD-5VDC-SL-C
Coil voltage: DC 5V
Coil resistance: 70Ω ~ 80Ω
Contact resistance: 100Ω Max
Operation time: 10msec Max
Release time: 5msec Max
Ambient temperature: -25°C to 70°C
Operating humidity: 45 to 85%RH
Operating current: 43mA ~ 46mA
Release current: 15mA ~ 18mA
Pin: 5Pin
Insulation resistance: ≥100M (Ohm)
Dielectric strength:
Between coil & contacts: AC 1500V 50HZ ~ 60HZ/min
Between contacts: AC 1000V 50HZ ~ 60HZ/min
Rated load:: 10A 250V AC / 10A 125V AC / 10A 30V DC / 10A 28V DC
Size: 1.8 x 1.5 x 1.6cm (L x W x H)

Application:

Domestic appliance, office machine, audio, equipment, automobile, etc.

Package included:
1 x SRD-5VDC-SL-C 5V Power Relay
